Manual band saw machine versatile and robust suitable for medium sized round, plate and profiles cutting. The care taken with the machine design and technical features allow a high precision cutting and absolute reliability. Low voltage electrical system according to EC rules. The machine can be equipped with roller tracks and related accessories.

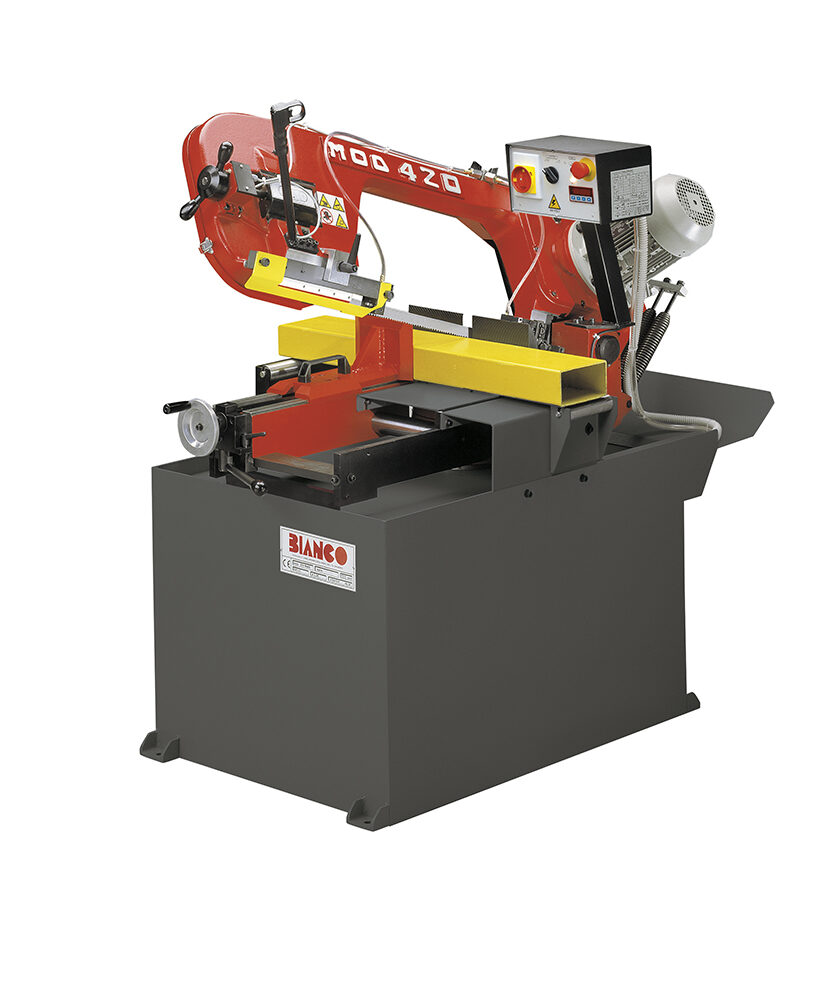

420 M DS MS
Overall Dimensions
140 x 160 x 180
Weight
438
Packaging
75 x 145 x 150
Cutting Capacity
| Cutting Capacity (mm) | 90° | 45° DX-R | 60° DX-R | 45° SX-L |
|---|---|---|---|---|
 Tondo
|
280 | 260 | 170 | 200 |
 Quadrato
|
240 | 240 | 160 | 160 |
 Rettangolo
|
420x200 | 260x200 | 160x160 | 250x100 |
Technical Data
- Working surface height 830 mm
- Blade motor power 0,9 - 1,5 kW (V400)
- Cooling pump motor power 0,06 kW
- Blade speed 35 - 70 m/min
Standard Accessories
- Millimetre rule 0-500 mm with mechanical length stop
- Infeed and outfeed roller
- Encoder + cutting angle digital display
