Semiautomatic band saw machine with bow and vice movement at hydraulic control, automatic fast up/down bow movement controlled by feeler pin and cutting progress with infinitesimal adjustment. Double safety button for cycle start and low voltage
electrical system according to EC rules The machine can be equipped with roller tracks and related accessories.

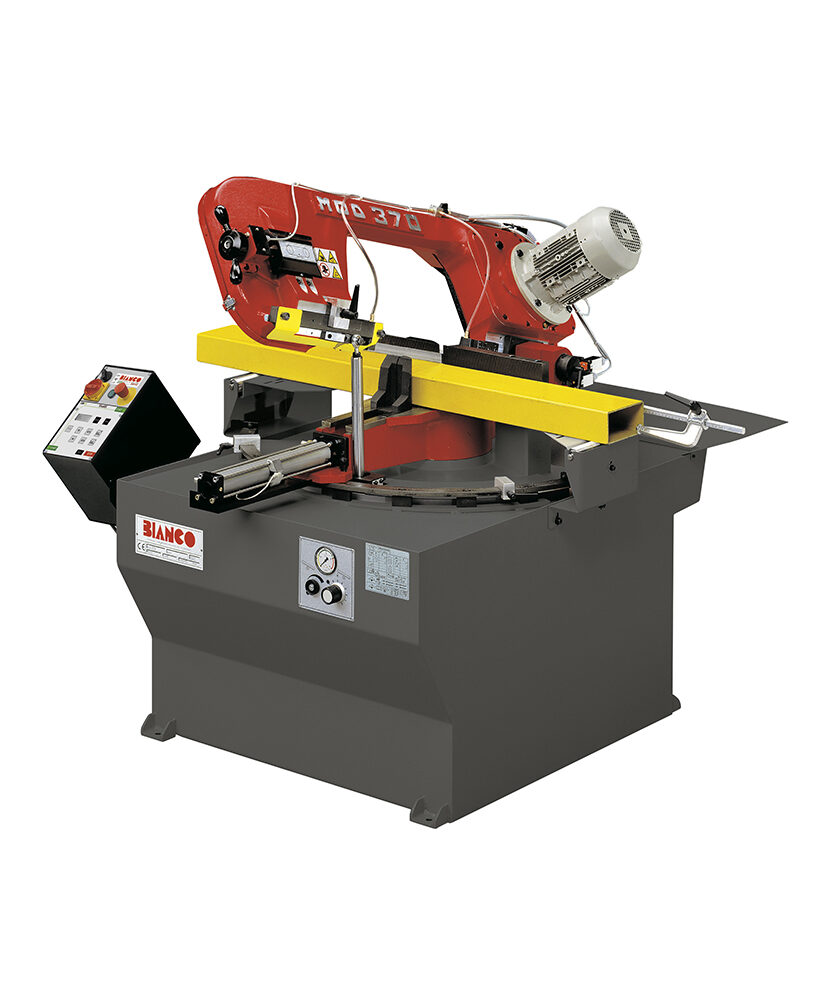

370 SA DS
Overall Dimensions
185 x 160 x 180
Weight
550
Packaging
110 x 150 x 150
Cutting Capacity
| Cutting Capacity (mm) | 90° | 45° DX-R | 60° DX-R | 45°SX-L |
|---|---|---|---|---|
 Tondo
|
260 | 210 | 130 | 220 |
 Quadrato
|
200 | 175 | 130 | 175 |
 Rettangolo
|
340x180 | 220x120 | 135x90 | 220x120 |
Technical Data
- Working surface height 830 mm
- Blade motor power 0,9 - 1,5 kW (V400)
- Hydraulic unit moter power 0,37 kW
- Cooling pump motor power 0,06 kW
- Blade speed 35 - 70 m/min
Standard Accessories
- Millimetre rule 0-500 mm with mechanical length stop
- Discharge tray
