Fully automatic bandsaw machine, operated by astate of the art PLC with a 7” touch screen panel to control each machine function. Bow rotation and feeding carriage controlled by Bruh-less motors. Perimetrical safety protection and low voltage electrical system according to EC rules. The machine can be fitted with an automatic loading unit and roller tracks with related accessories.

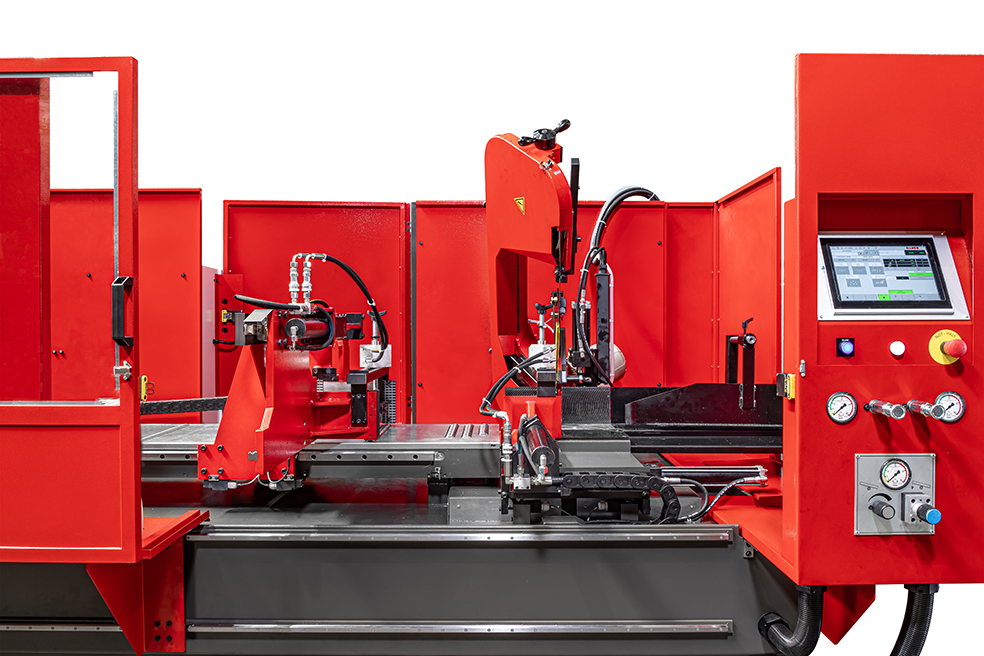

370 A DS TOUCH 3R
Overall Dimensions
515 x 320 x 195
Weight
2150
Packaging
500 x 220 x 190
Cutting Capacity
| Cutting Capacity (mm) | 90° | 45° DX-RH | 60° DX-RH | 45° SX-LH |
|---|---|---|---|---|
 Tondo
|
280 | 230 | 140 | 200 |
 Quadrato
|
240 | 230 | 140 | 170 |
|
Tondo
|
310x240 | 230x230 | 140x140 | 220x100 |
Technical Data
- Working surface height 835 mm
- Blade motor power 1,5 kW (V400)
- Hydraulic unit moter power 0,37 kW
- Cooling pump motor power 0,12 kW
- Chip conveyor motor power 1,95 Nm
- Blade speed 15 - 101 m/min
- Carriage stroke 3000mm
- Scrap length 240mm
Standard Accessories
- Feeding carriage controlled by<br/>Brush - Less motor
- Powered cleaning brush
- Chip Conveyor 0.09 Kw
- Inverter
- Automatic bow rotation controlled<br/>by Brush - less motor
- Cleaning System with water gun
